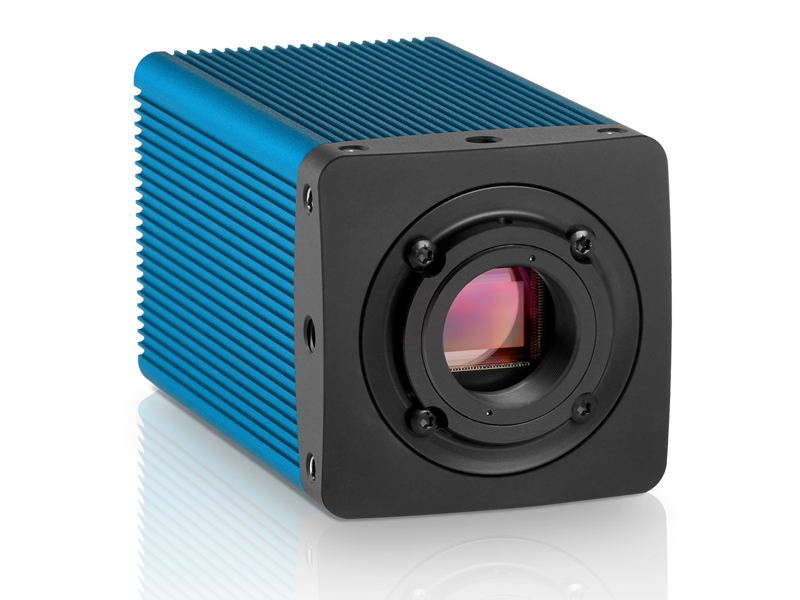

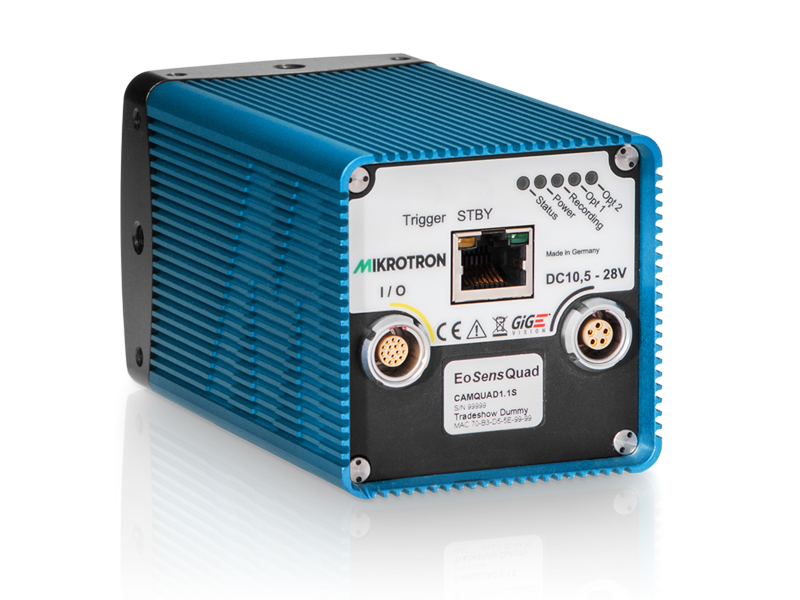

Mikrotron 一体式高速相机,高速高灵敏度,2500fps@1M
MotionBLITZ QUAD1.1S是高灵敏度和超快的高速摄像机,具有高达 2500 fps 和***图像质量,可执行其高速任务。
得益于内置的环形缓冲器,它也可以在不连接笔记本电脑或 PC 的情况下使用,然后以全分辨率和速度记录长达 4.96 秒,而无需复杂的测试设置。
MotionBLITZ QUAD1.1S的高感光度使摄像机能够在机器内部使用,尤其是在光线条件恶劣的情况下。这使得可视化工业厂房和机器中的过程成为可能。
Technical Data
| Model | UAD1.1S |
| Resolution [MP] | 1.1 MP |
| Resolution (h x v) | 1280 x 864 px |
| Frame rate (max.) | 2500 fps |
| Chroma | color |
| Interface | GigE Vision |
| Shutter type | global shutter |
| Sensor size (h x v) | 17.54 x 11.84 mm |
| Optical diagonal | 21.16 mm |
| Sensor format | 4/3 " |
| Pixel size (h x v) | 13.7 x 13.7 µm |
| Trigger modes | Manual, External analog Voltage, External TTL, Acc |
| Exposure time (min) | 1 µs |
| Exposure time (max) | 1 sec(external ∞) |
| Pixel format / max | bayer8 / 8 bit |
| Internal memory | 8GB,16GB |
| Recording time | 2.48 s(8GB) |
| AOI | yes |
| Shading correction | yes |
| Defect pixel correction | yes |
| Lens mount | C-Mount/FG-Mount |
| Dimensions (w x h x d) | 65 x 65 x120 mm |
| Weight | 500 g |
| Ambient temperature | -10 to 45 °C |
| Ambient humidity | 10 to 90 % (non-condensing) |
| Shock / Vibration proof | 20 g /2 grms |
| Protection class | IP30 |
| Power supply | 10.5 to 30 V (DC) |
| Power consumption | 11 W (dep. on operating mode) |
Frame Rates
| Resolution (h x v) | FRAME RATES |
| 1280 x 1024 | 506 fps |
| 1280 x 720 | 718 fps |
| 1280 x 512 | 1008 fps |
| 640 x 480 | 1869 fps |
| 512 x 512 | 2032 fps |
| 320 x 240 | 5672 fps |
| 128 x 100 | 18610 fps |
| 128 x 2 | 112170fps(max) |
